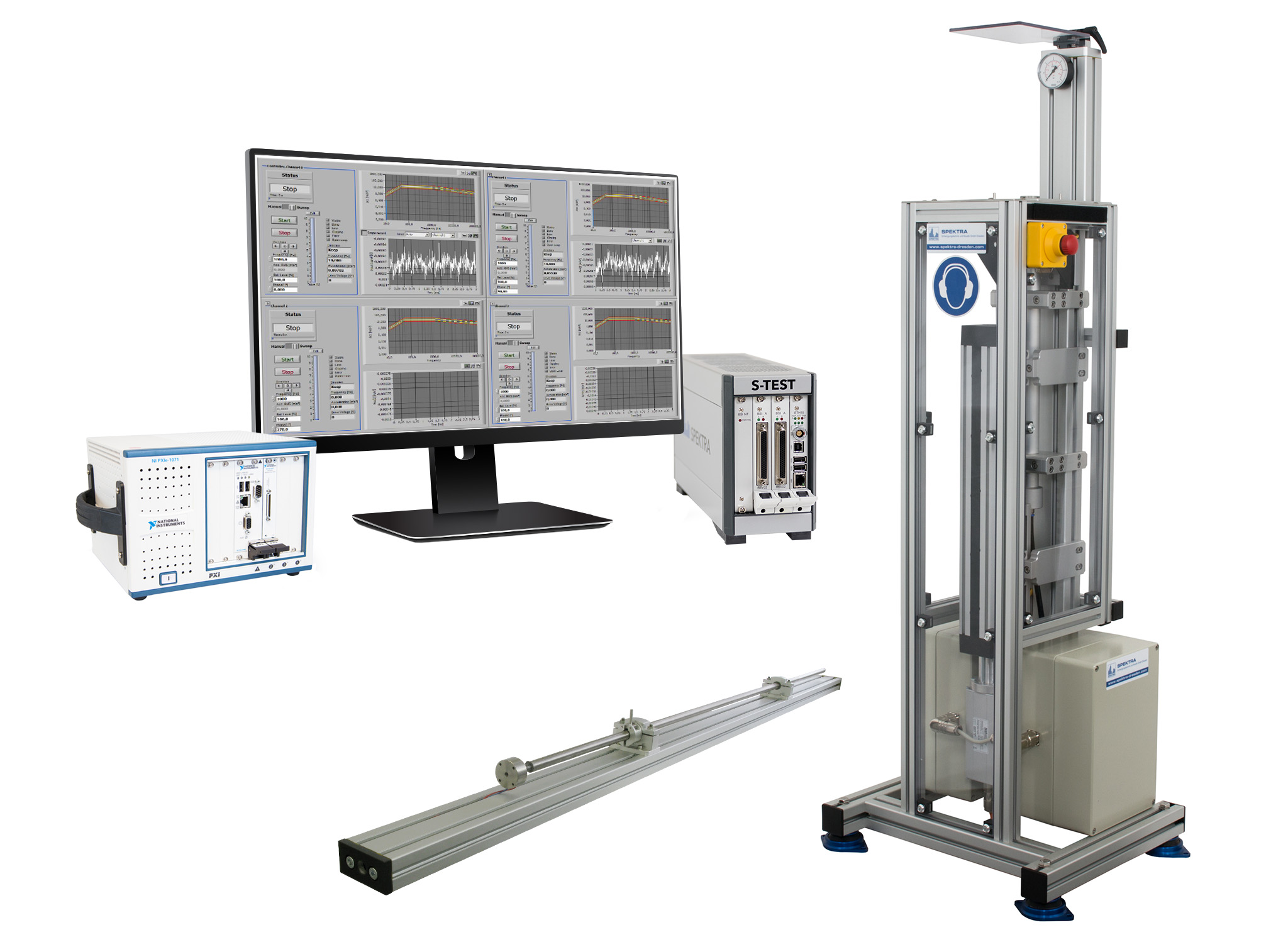

S-TEST Lab STS
In sensor characterization, shock excitation helps test the robustness of a DUT. The shock excitation allows a very precise and controlled impulse to be applied to the DUT. The piezo exciter allows you to set the pulse length and amplitude independently within a certain range.
- Wide amplitude range from 200 m/s² up to 2,000 km/s²
- payload 80 g
- Excitation mode: semi-sinusoidal shock, adjustable waveform or sinusoidal burst
- Excitation with hammer-anvil or piezoelectric actuator
- Independent control of amplitude and pulse width
- Excellent repeatability of shock
Software highlights
- Fast shock sequence, if necessary with amplitude control
- Logging, visualization, mathematics
SE-221
SE-221
Shock exciter for testing and calibration of shock transducers as well as complete measuring instruments (measuring chain) according to ISO 16063-22. Allows the secondary calibration of shock sensors in very high precision and efficiency with shock amplitudes up to 200 000 gn. - depending on the choice of Hopkinson-bar. Typical applications can be found at accredited calibration laboratories, research and development, aerospace industry, sensor manufacturers or metrology institutes (NMI). The well-known SPEKTRA quality guarantees the performance of automatic calibrations with excellent repeatability of the sinusoidal shocks.
chevron_right
SE-201
SE-201
Pneumatic shock exciter for testing and calibration of shock transducers as well as complete measuring instruments (measuring chain). The SE-201 features a large amplitude range and is also suitable for fully automatic tests with very high quality and performance. Thereby the shocks, with a DUT mass up to 80 g, are very well reproducible. All mechanical components of the exciter are designed for high stability.
chevron_right
SE-220 HOP-MS
SE-220 HOP-MS
Shock exciter for testing and calibrating acceleration sensors as well as for environmental testing of small assemblies and parts
chevron_right
S-TEST/2
S-TEST/2
S-TEST/2 - Compact test system for digital sensors
Compact system level test solution (SLT) for sensors with digital interfaces. For use in development and testing or for quality assurance in the manufacturing process.
chevron_right
VCS 40x
VCS 40x
Flexibly configurable components, based on the powerful PXI system from National Instruments®. Drive of our exciters, from very low to very high frequencies: 10 mHz...500 kHz. Versatile applications allow very fast and effective production tests.
chevron_right
