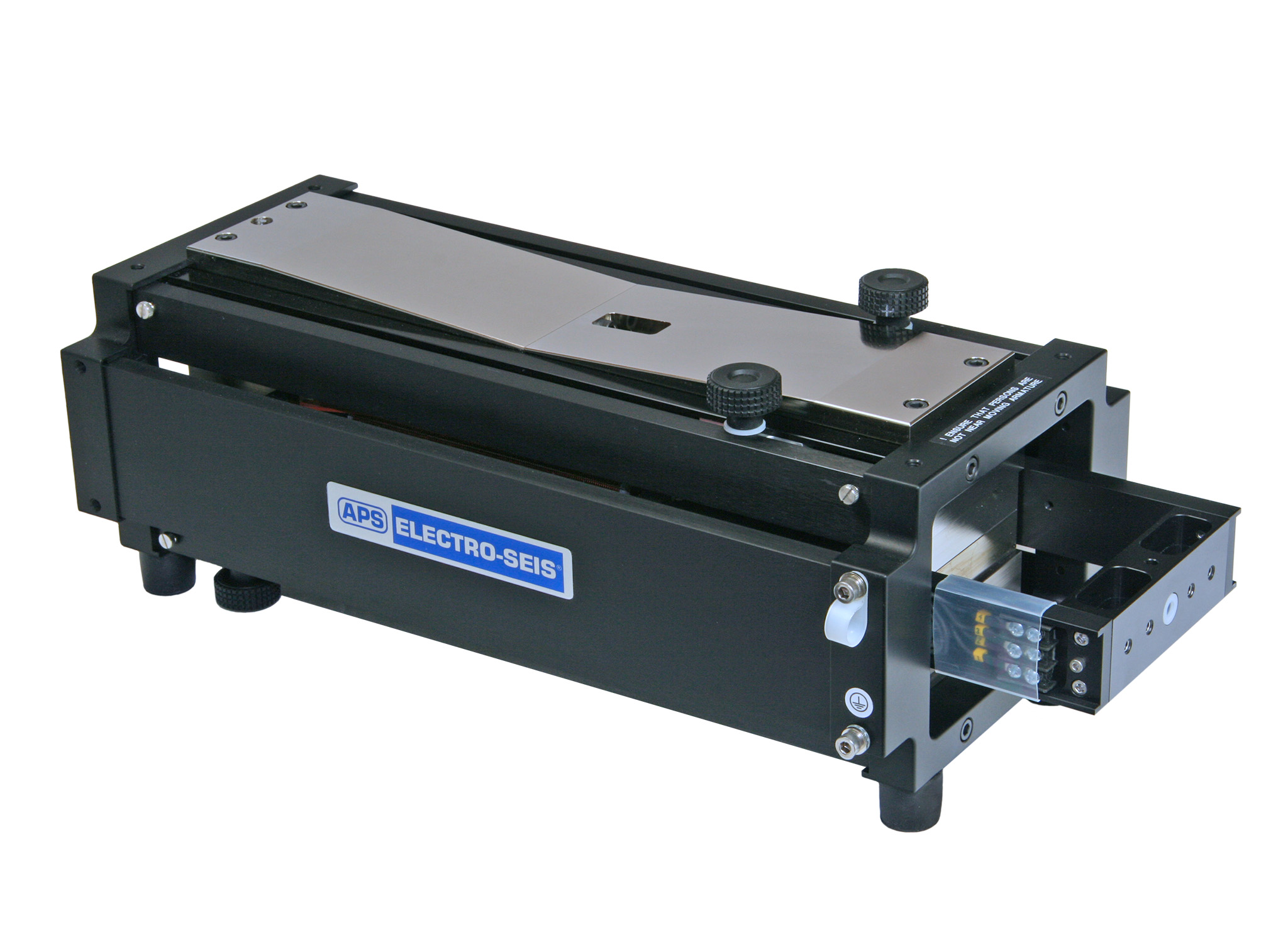

APS 113
Ball-bearing ELECTRO-SEIS® Long-Stroke vibration exciter specifically designed to be used alone or in arrays for modal excitation of complex structures, particularly when low frequencies are required. Different operating modes with reaction masses, fixing points or auxiliary table kits multiply the application possibilities.
Downloads:
Product Video:
- Force, max.: 133 N (optionally 186 N)
- Displacement: 158 mm (peak-peak)
- Frequency range: DC … 200 Hz
- Payload, max.: horizontal = 25 kg (55 lbs) / vertical = 8 kg (18 lbs)
- horizontal or vertical excitation
- Optional accessories:
- Power amplifier
- Auxiliary table kit − horizontal and vertical
- Handles and bars
- Reaction mass assembly
- Modal stinger kit
- Steel cable kit
- Overtravel switch
For detailed information see current data sheet. Subject to change without notice.
