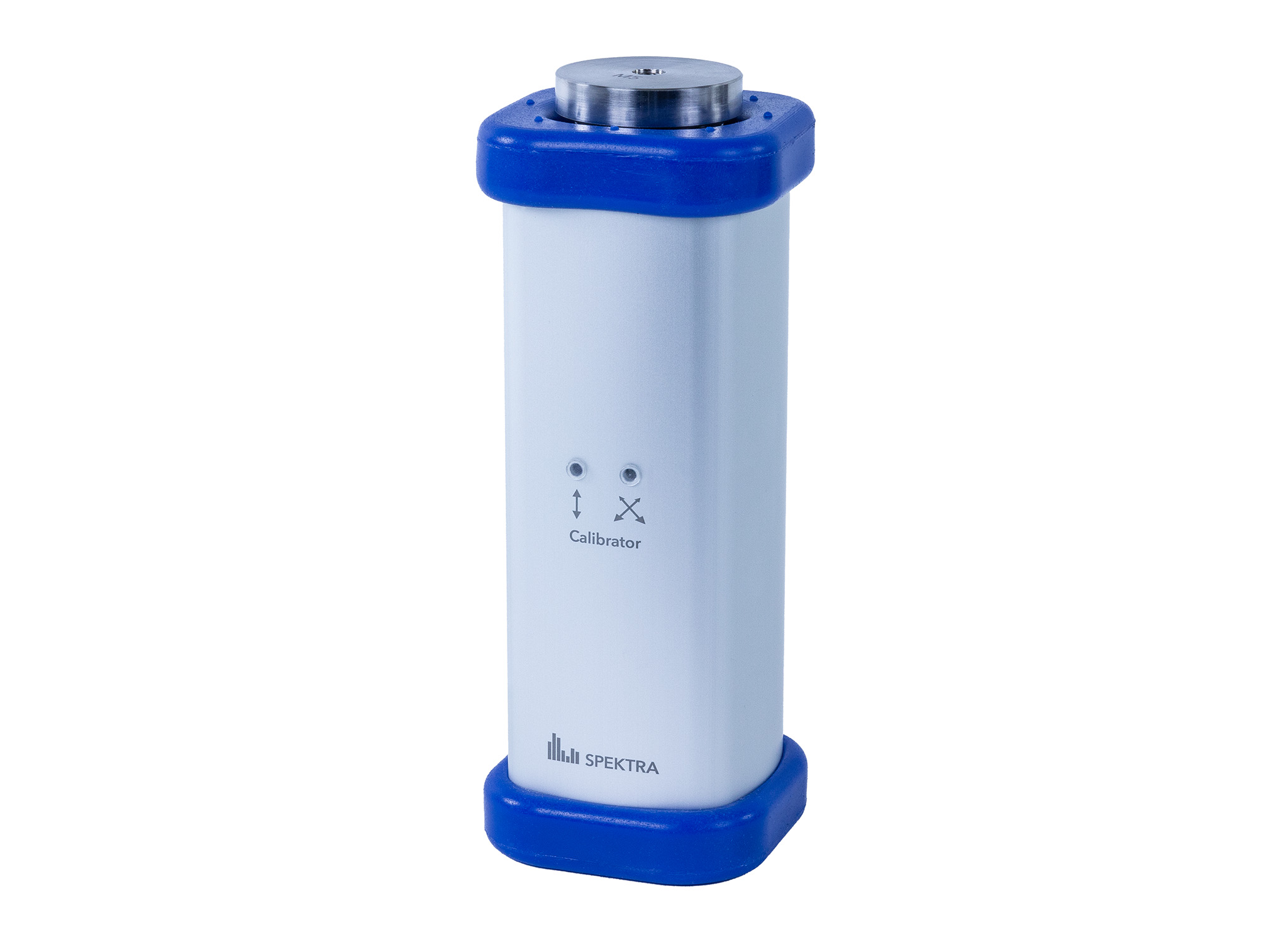

Front view of the hand-held calibrator CV-05 for vibration sensors

The CV-05 is a mobile, battery-powered calibrator e.g. for on-site testing of human vibration measuring devices in accordance with ISO 8041. Highlights are the user-friendly interface, a  high payload up to 300 g and the traceable DAkkS calibration certificate (corresponds to ILAC-MRA).

Downloads:

Selected data

  • Frequency: 79.58 HZ / 159.15 Hz
  • Acceleration (m/s2 RMS): 1; 2; 3; 4; 5; 6; 7; 8; 9; 10
  • Displacement (μm RMS):
    • 4; 8; 12; 16; 20; 24; 28; 32; 36; 40 (@ 79.58 Hz)
    • 1; 2; 3; 4; 5; 6; 7; 8; 9; 10 (@ 159.2 Hz)
  • Payload, max.: 300 g (0.66 lbs) resp. 200 g (0.44 lbs) - depending on frequency
  • Weight, total: 1.25 kg (2.8 lbs)
  • Dimensions (H × W × L): 168 mm × 65 mm × 65 mm (6.6 in × 2.6 in × 2.6 in)

Features

  • hand-held vibration calibrator
  • integrated reference sensor
  • warning LED for high transverse motion
  • big vibration table for heavy DUT
  • simple user interface
  • rugged housing for maximum reliability
  • transportation case and standard mounting adapter set included
  • calibration certificate according to DAkkS standard included (corresponds to ILAC-MRA)

For further details, please refer to the technical data sheet. Subject to change without notice.
