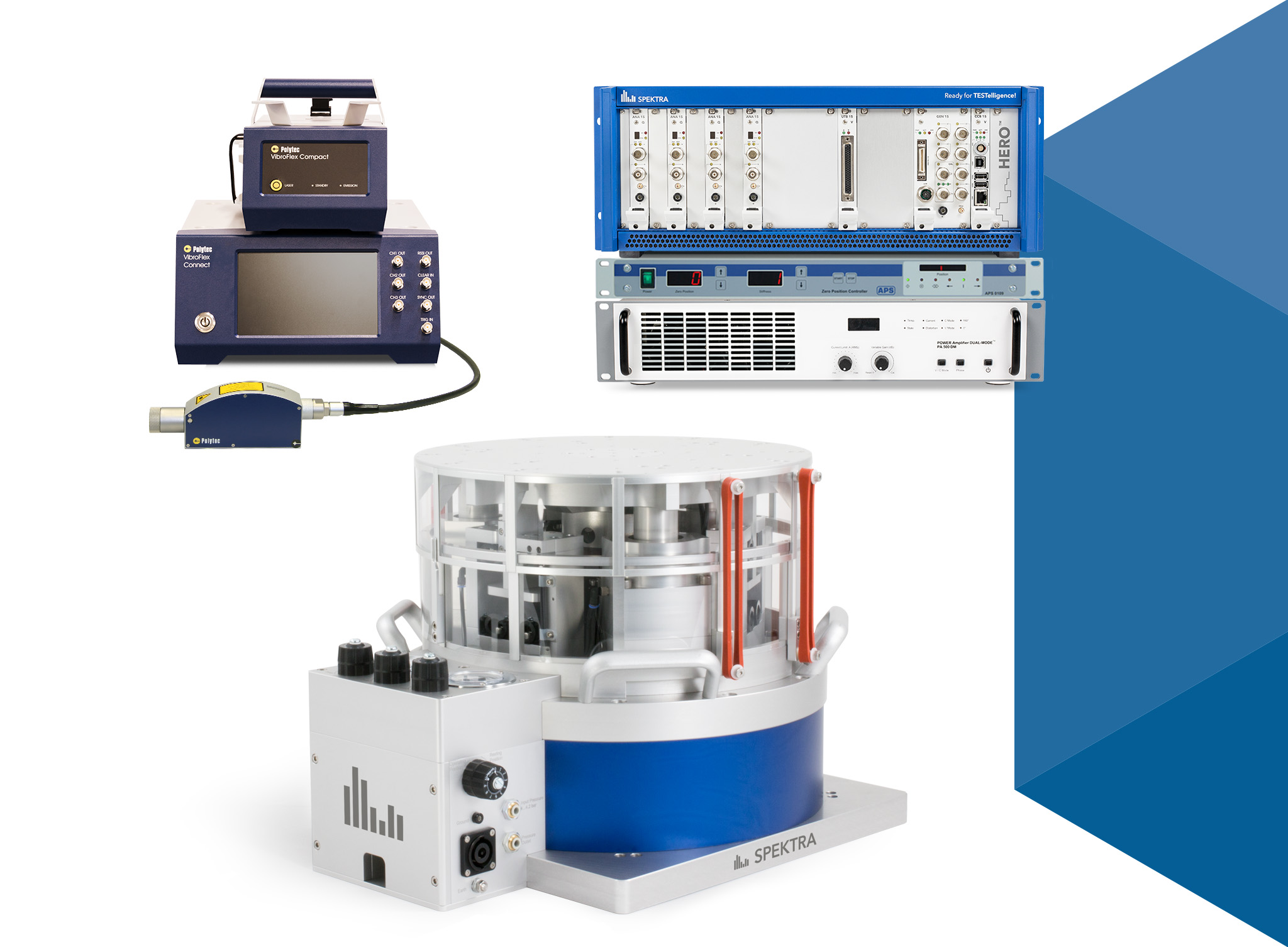

CS Q-LEAP™ P-SINE with SE-13

Key features

• Frequency range: 0.1 Hz…400 Hz
• Traceable to PTB (German National Metrology Laboratory)
• Calibration of vibration sensors, seismic sensors and geophones
• Integrated sensor database
• Integrated e-Cal™ software for the generation of calibration certificates (print, PDF...)
• Easy data exchange with applications like ERP systems or measuring equipment databases

Technical data

• Max. stroke: 25 mm (1 in)
• Max. velocity: 300 mm/s (12 in/s)
• Max. acceleration: 60 m/s² (6 g_n) peak
• Operation: vertical
• Moving element weight: 8 kg (18 lbs)
• Max. payload: 50 kg (110 lbs)

CS Q-LEAP™ software

• sine calibration
• sine sweep
• vibration measurement
• vibration generation
• more on demand

Typical DUTs

• heavy seismic sensors (Seismometers)
• seismic simulation for components
• geophones for structure / building vibration measurement

Standards

• ISO 16063-11: primary calibration of vibration transducers by laser interferometry
• ISO 16063 - 21: Calibration of vibration transducers by comparison to a reference transducer
• ISO 17025: General requirements for the competence of testing and calibration laboratories
• DIN 45669: Sensors for measurement of vibration immission

_{For further details, please refer to the technical data sheet. Subject to change without notice.}
