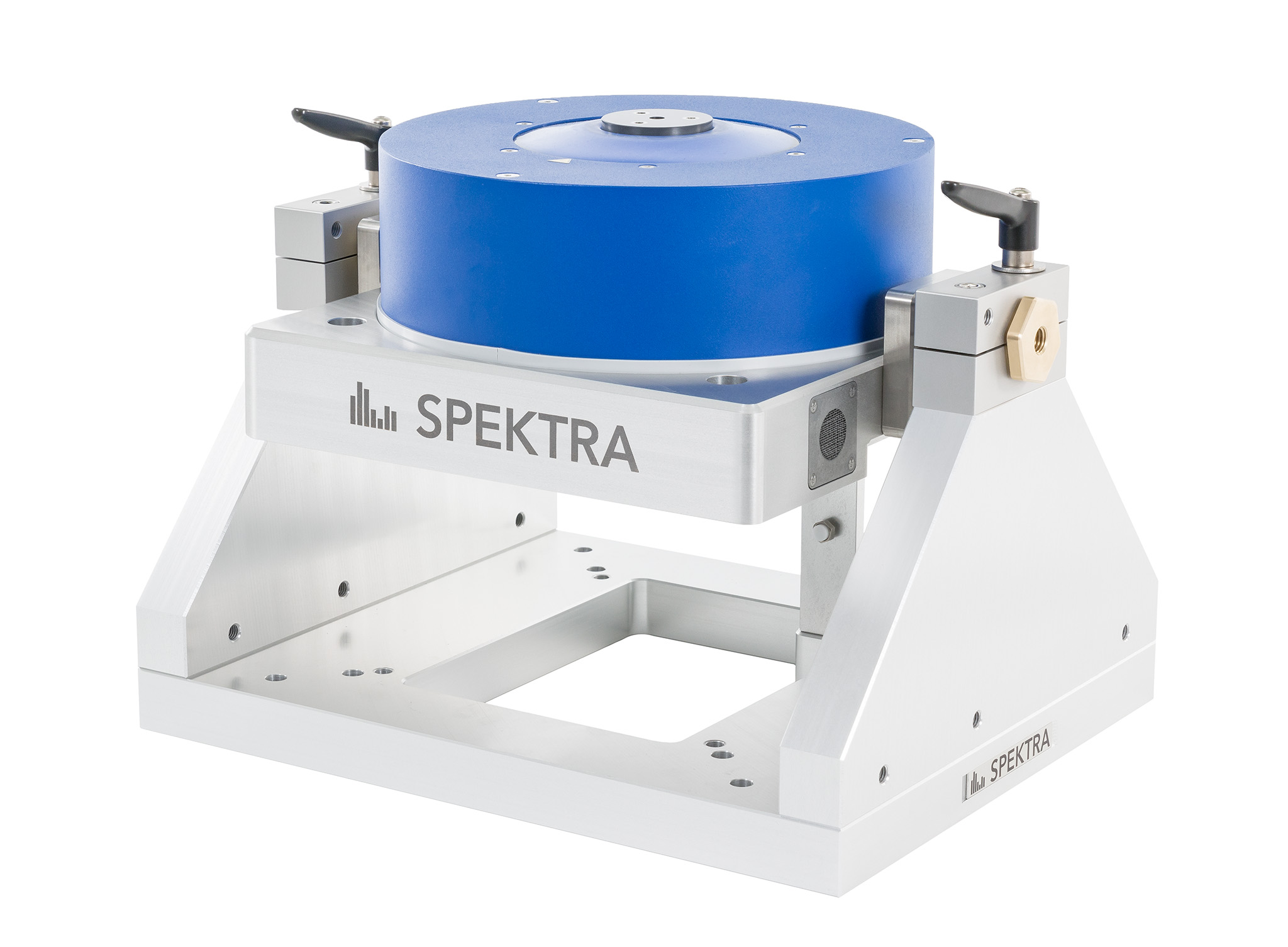

SE-2x Trunnion Base
Allows the vibration axis of the exciter (SE-20, SE-21 and SE-29) to be tilted and locked at any angle between 0° and 90° from the vertical axis.
- Calibration of sensors that must be used in a specific orientation to the earth's gravity field
- To excite structures under test (e.g. for modal analysis)
- Quick and easy change between vertical and horizontal operation with good repeatability
- Suspension of the vibration exciter by means of eyebolts screwed into the tilting frame
- For SPEKTRA vibration exciters SE-20, SE-21 and SE-29
- Dimensions (H × B × L): 230 mm × 375 mm × 300 mm (9.0 in × 14.8 in × 11.8 in)
- Weight: ca. 15 kg (33 lbs)
- Material: Aluminium
