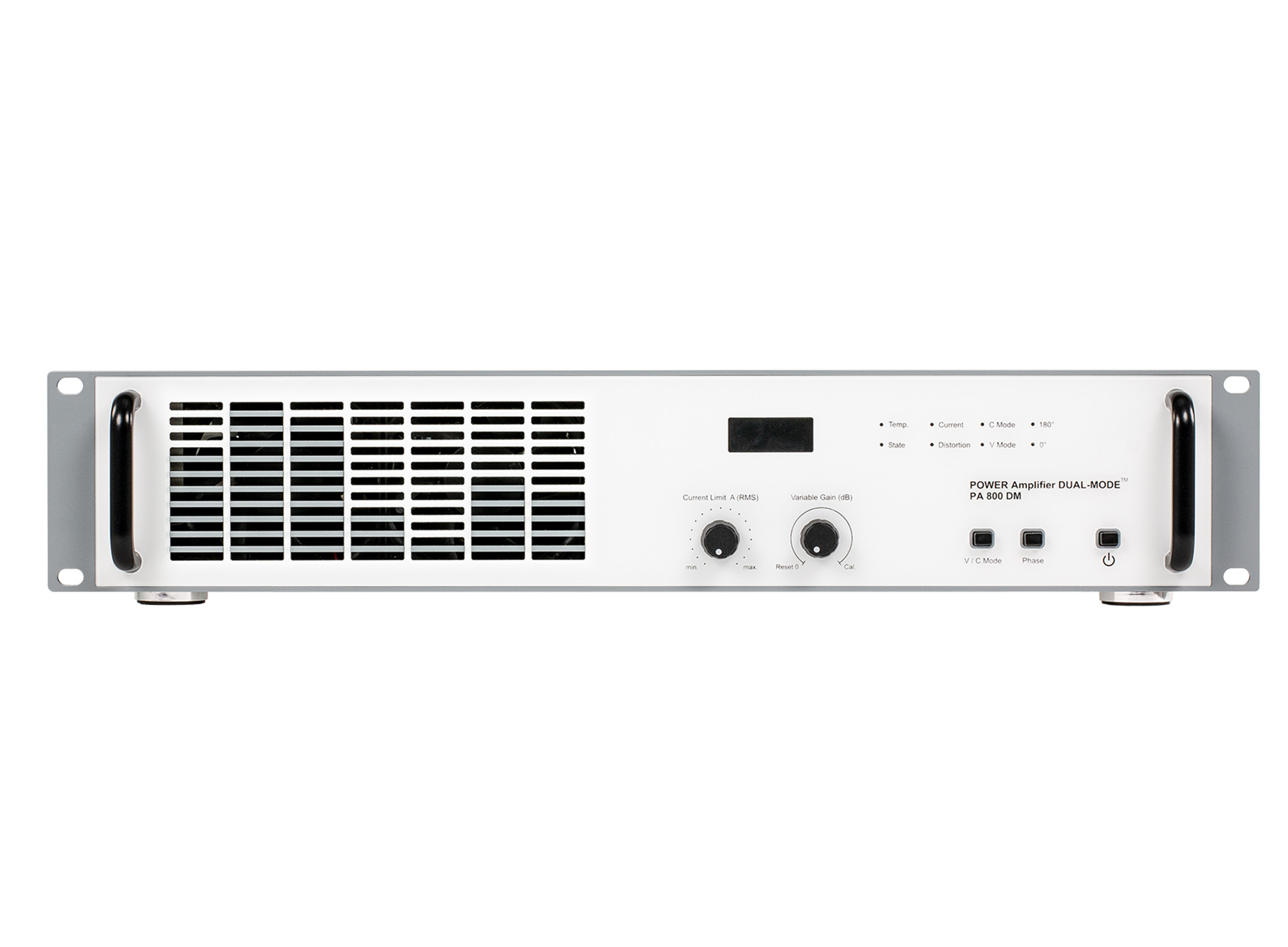

PA 800 DM
For all vibration exciters that require a 810 VA power amplifier (load impedance 2.5 Ω). The PA 800 DM offers a max. frequency range DC ... 25 kHz, small harmonic distortion, excellent stability even with temperature or supply line variations and helpful protection functions.
Downloads:
Features
- frequency range:
20 Hz...15 kHz full power
DC...25 kHz small signal - power output, max. 810 VA into a 2.5 Ω resistive load
- high reliability operation
- switch between voltage and current mode
- phase shift (0° or 180°)
- variable gain control
- current limit control
- temperature protection
- multifunction OLED display
Applications
- modal testing shakers
- environmental testing systems
- calibration systems
Range of Use
- research and development departments in industry
- environment testing laboratories
- calibration laboratories
- universities and research institutes
For further details, please refer to the technical data sheet. Subject to change without notice.
PA 500 DM
PA 500 DM
For all vibration exciters that require a 500 VA power amplifier (load impedance 4 Ω). The PA 500 DM offers a max. frequency range DC...200 kHz, small harmonic distortion, excellent stability even with temperature or supply line variations and helpful protection functions.
chevron_right
PA 180 DM
PA 180 DM
For all vibration exciters that require a 180 VA power amplifier (load impedance 0.8 Ω). The PA 180 DM offers a max. frequency range DC ... 100 kHz, small harmonic distortion, excellent stability even with temperature or supply line variations and helpful protection functions.
